E-Bike Conversion Kit 36V 250W 27.5" Rear Cassette Motor Kit with 36V Bottle Battery Samsung Cell and Integrated Torque PAS Sensor Model A3pro
Pairs well with
E-Bike Conversion Kit 36V 250W 27.5" Rear Cassette Motor Kit with 36V Bottle Battery Samsung Cell and Integrated Torque PAS Sensor Model A3pro
How to Install?
Core Advantages of A3
•Featherlight 9kg (including packaging) – Still lighter than most competitors
•Hidden Torque Sensor– Seamless pedal assist with clean looks
•Fully Waterproof (IPX6)– Battery & components rain-ready
•60km Range– From a compact 36V 7Ah battery (*Actual performance will vary depending onctemperature,croad conditions, rider's weight, etc.)
•Auto-Sleep– Saves power when not in use
•Anti-Theft Protection– Ride with peace of mind
PRO Exclusive Upgrades
Color Display
- Track your speed, battery, and 5 assist levels at a glance
- Hold ▼ for 6km/h walk mode (perfect for hills or crowded areas)
Headlight
- 30 Lux brightness illuminates night rides
- Double-press "+" to toggle – no separate switches
Compare A3 vs. A3 PRO
A3
A3 PRO
Details
Technical Data
Motor Type: 36V 250W brushless geared rear cassette motor
Wheel Size: 27.5" (pre-built with double-wall rim & 12G black spokes)
Compatibility: Works with 8/9/10-speed cassettes
Max Speed: 25km/h
Max Torque: 56N.m
Brake Compatibility: V-brake and disc brake
Fork Spacing: Requires 138mm between dropouts

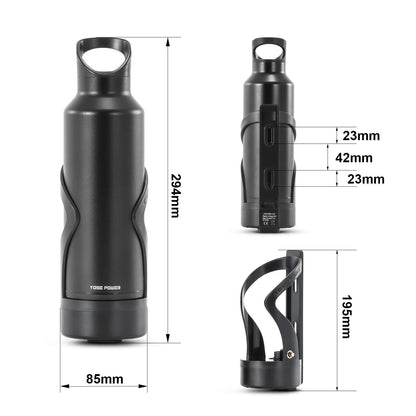

Battery: 36V 7Ah(252Wh) downtube battery (Samsung cells)
Range: Up to 60 km per charge (*Actual performance will vary depending onctemperature,croad conditions, rider's weight, etc.)
Charger: 42V 2A (included)
Controller: 36V integrated sine wave, Low Voltage Protection: 29V, Rated Current: 7A, Max Current: 12A
LCD Display: M200C colorful display, 5 Assist levels, and 6km/h traction with holding Down Button.
PAS Sensor: Torque sensor (integrated into motor for precise pedal assist)
Front light: 2W 30Lux, turn on/off with clicking "+" button twice.
2in1 cable: connected to display and front light.
Packing List
1 x rear cassette motor with 27.5" rim
1 x downtube batte
1 x charger
1 x integrated controller
1 x LCD display
1 x front light
1 x 2in1 cable
1 x free tools
Additional Information
Warranty:
Motor & Battery: 18 months
Other Components: 12 months
Shipping Time:
Germany: 2-4 business days
Other Countries: 4-8 business days
Difference:A3pro kit has front light, LCD display and 2in1 cable, but A3 kit doesn't have these three parts.
